Rotoclear C2
Dos perspectivas.
Un solo sistema.
Hasta dos cabezales de cámara dentro del área de trabajo transmiten una vista en vivo del corte — primer plano de la herramienta y vista completa de la mesa a la vez. Véalo en la pantalla de la máquina, o en cualquier punto del taller.
Una sola unidad de control lo maneja todo
La unidad de control C2 controla ambos cabezales, transmite a cualquier pantalla y se integra con su red. Configure cabezales, montajes y longitudes de cable en minutos — su cotización llega por correo electrónico.
Configure ahora y obtenga una cotizaciónDos perspectivas a la vez
Use uno o dos cabezales de cámara y observe su proceso desde dos ángulos al mismo tiempo — desde arriba, de lado o justo en la herramienta.
Transmita desde cualquier lugar
La transmisión en red coloca la vista en vivo de su máquina en cualquier pantalla — en el banco de al lado o al otro lado del mundo. La base para una estación de monitoreo central.
Capture lo que importa
Grabe pasos específicos del proceso en almacenamiento externo para revisarlos después o compartirlos con los clientes. (¿Necesita grabar cada trabajo automáticamente? Esa es la C Pro.)
Diseñada para máquinas grandes
Hasta nitidez 4K, y el C-Extender extiende los tendidos de cable de 20 m a 40 m — o 60 m con dos — para máquinas grandes.
Alignment sensor for moving mounts
A built-in position sensor tracks the camera head's movement and corrects for it in real time — what makes shooting directly from the tool's own perspective possible.
Extend your reach with C-Extender
Chain 20 m cable segments through C-Extender signal amplifiers to reach 40 m, or 60 m with two, on larger machines.
Open API
Pull the C2's feed into your own software, or automate it as part of a larger workflow, through Rotoclear's API.
Cabezales de cámara para cada enfoque

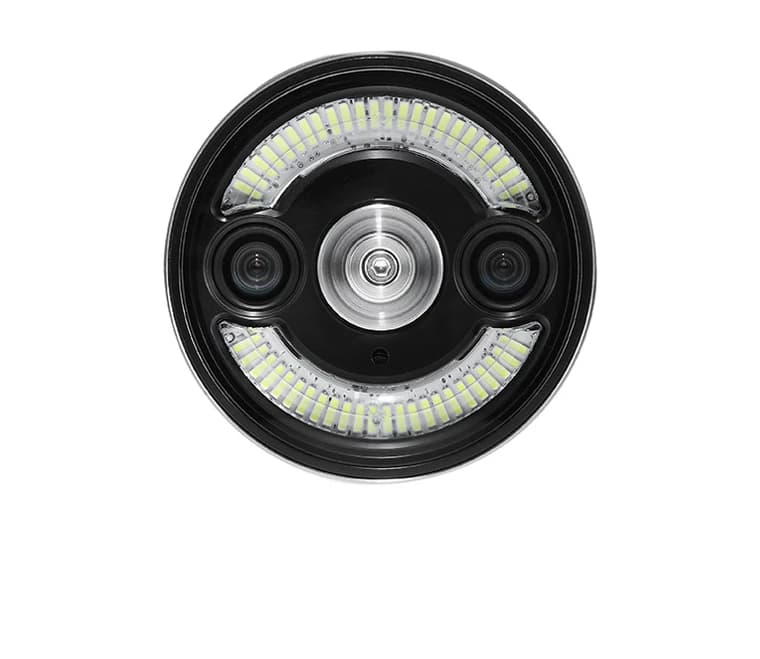

Elija la óptica por cabezal: F1 vista de primer plano de la herramienta (8 a 20 pulg.), F2 vista amplia superior/lateral (20 pulg. a 20 pies), o la óptica F1+F2 doble. Los tendidos de cable se extienden hasta 60 m con el C-Extender.
Piezas 10083 · 10084 · 10085 · 10370
Móntela a su manera
Cuatro sistemas de montaje cubren cada pared de máquina y cada línea de visión.
Brazo flexible — pasamuro
Montado en la pared de la máquina, los cables van por fuera
Pieza 10144
Brazo flexible — sobre muro
Atornillado frente a la pared — instalación fácil
Pieza 10178
Brazo flexible — magnético
Sujeto por imán — encuentre primero la posición perfecta
Pieza 10222
Montaje esférico
Enrasado en la pared — mínima acumulación de viruta
Pieza 10229
Benefits
What the C2 actually changes on the floor
Five ways a clear, always-on view into the machine interior pays for itself — condensed from the manufacturer's own case for the system.
- See inside fully enclosed machines
- Keep monitoring through heavy coolant use
Typical applications
Where the C2 earns its keep
Prototyping
Watch a new program's first real cuts closely before you trust it to run unattended.
Small and medium batch runs
Keep visual coverage on jobs too short to justify a dedicated operator watch.
Machine start-up monitoring
Watch a newly commissioned or freshly retrofitted machine's early cycles closely.
Pairs especially well with a Rotoclear S3 spinning window on the same machine →Capturing specific process steps
Grab footage of just the moment you need, on demand, rather than recording continuously.
Centralized monitoring
Route multiple machines' feeds to one monitoring station or control room.
Training and onboarding
Show new operators what a correct cut actually looks like, not just what the control panel reports.
Sharing process expertise
Pull in a specialist's eyes on a job without needing them on-site.
Where to point the camera
Find the view that fits your machine
Tool View
Mounted right where the cutting happens
Mount a head right at the spindle housing, next to the tool holder, for the closest possible look at the cut itself.
Plan this one early — ask your machine builder about a Tool View option when the machine itself is being configured, since fitting this exact position in later can be tight.
Top View
Looking down from the ceiling
A ceiling-mounted head takes in the whole work envelope at once, which pairs well with a tighter Tool View or Side View elsewhere on the same machine.
Align the camera to the machine's X, Y, or Z axis — it makes the picture much easier to read at a glance.
Side View
Watching from the side
A side-mounted head keeps tool changes and the immediate surroundings in view without needing a spindle-mounted position.
When a true Tool View isn't practical — especially on a retrofit — Side View is usually the closest workable substitute.
Configure your C2
Build the system for your machine
Pick the lens per head, the cable run, and how it mounts — the C2 ships as a configuration, not a fixed SKU.
Camera-head lens options
Each head takes its own lens — mix F1 and F2 across two heads, or pick the combined F1+F2 head to switch on the fly.
Lens options at a glance
Data cable length
Native cable runs cover 10 m and 20 m; the C-Extender chains 20 m segments together to reach 40 m or 60 m on large machines (part 10370).
| 10 m | Part 10035 |
| 20 m | Part 10036 |
| 40 m | 1× C-Extender |
| 60 m | 2× C-Extender |
Mounting
Ball, flex-arm through-wall, pre-wall, or magnetic — see "Mount it your way" above for the hardware and part numbers.
Installation dimensions
Plan your mount
Camera head and control unit dimensions for the Rotoclear C Pro, straight from the manufacturer's technical specifications.
- Camera head — diameter2.76 in
- Camera head — length (without mount)1.97 in
- Control unit — length7.76 in
- Control unit — width4.09 in (4.96 in incl. clip)
- Control unit — height1.73 in
Full technical specifications
Rated voltage, power draw, and connectivity for the C2 control unit.
- Rated voltage
- 24 VDC, protected against reverse polarity
- Power consumption
- 60 W max. (2 camera heads, 4 signal amplifiers)
- Current
- 2.5 A max. (2 camera heads, 4 signal amplifiers)
- Ethernet
- 1 × 1 Gbit/s and 1 × 100 Mbit/s
- USB
- 3 × USB 2.0 (500 mA max. each)
- DisplayPort
- —
- Video signal
- HDMI (1×)
- Data
- 2 × M12 x-coded (female)
¿Qué sistema le conviene?
Compare los sistemas de cámara Rotoclear
Tres sistemas, un diseño compartido — todas las funciones lado a lado, desde lo que viene integrado en todos hasta lo que solo agrega la C Pro.
 C Basic | C2 |  C Pro | |
|---|---|---|---|
| C2 y C Pro | |||
| Network / web streaming | No incluido | Incluido | Incluido |
| Touch-friendly interface | No incluido | Incluido | Incluido |
| Remote viewing | No incluido | Incluido | Incluido |
| Network integration | No incluido | Incluido | Incluido |
| Over-the-air software updates | No incluido | Incluido | Incluido |
| Open API | No incluido | Incluido | Incluido |
| Recording resolution | No incluido | Max. FullHD | Max. 4K |
| Exportable recordings | No incluido | Incluido | Incluido |
| Solo C Pro | |||
| Adjustable lighting | No incluido | No incluido | Incluido |
| Tap-to-focus lenses | No incluido | No incluido | Incluido |
| Continuous background recording with a searchable timeline | No incluido | No incluido | Incluido |
| Event tagging for quick lookup | No incluido | No incluido | Incluido |
| Onboard storage | No incluido | No incluido | Incluido |
| Slow-motion capture | No incluido | No incluido | Incluido |
| Time-lapse capture | No incluido | No incluido | Incluido |
| Configurar y obtener cotización | Configurar y obtener cotización | Configurar y obtener cotización | |
Downloads
Manufacturer documentation
Official Rotoclear resources for the C2 — hosted by Rotoclear, not AllCNC, so they always reflect the current release.
Ready to spec a C2?
Configure your lens, cable, and mount options and get a written quote from AllCNC.
